CHR21QEVF

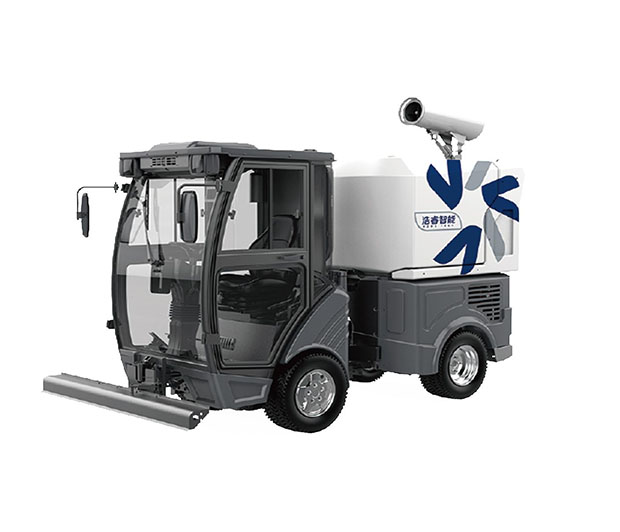

Pure Electric High Pressure Washing and Disinfection Machine
Main purpose
Cleaning, washing and decontamination of urban auxiliary roads, secondary trunk roads and some trunk roads; Cleaning, washing and auxiliary straw picking operations in parks, scenic spots, squares, high-speed railway airports, regions, industrial parks, schools and communities; Cleaning and cleaning operations in narrow areas such as back streets, alleys and commercial blocks.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function Introduction
01
Green environmental protection
The whole machine is driven by lithium battery, which is green and environment-friendly.
02
Long operation time
8-hour continuous operation power system, long operation time, continuous operation time of more than 8 hours.
03
Flexible
Articulated steering structure, small turning radius, flexible steering operation, and the minimum turning radius is 2.6m.
04
Good trafficability has good trafficability
It can easily pass through the isolation pile. The width of the front spray frame is 1540mm, and the minimum passing width (inclined front spray frame) is 1350mm.
05
Gradient
The maximum climbing gradient can reach 20% and the maximum speed can reach 20km / h.
06
One machine with multiple functions
Equipped with front washing function, side washing function, rear spray function, hand-held high pressure washing function, optional fog spray function (effective range 20M), high pressure washing function (with waste water suction function).
Application Scenario
Cleaning, washing and decontamination of urban auxiliary roads, secondary trunk roads and some trunk roads; Cleaning, washing and auxiliary straw picking operations in parks, scenic spots, squares, high-speed railway airports, regions, industrial parks, schools and communities; Cleaning and cleaning operations in narrow areas such as back streets, alleys and commercial blocks.
Parameter List
| Project | Parameter | |
|---|---|---|
| Car Model | CHR21OEVF | |
| Product Parameters | Dimension(mm) | 3480×1540×2050 |
| Wheelbase(mm) | 1465 | |
| Min Ground clearadius(mm） | 100 | |
| Minimum turning radius(mm） | 2600 | |
| Maximum total mass(kg) | 2330 | |
| Curb Weight(kg) | 1420 | |
| Water tank volume(L) | 900 | |
| Max Gradeability(/) | 20% | |
| Flushing width(m) | 1.7 | |
| Working speed(km/h) | 1~10 | |
| Maximum speed (km） | 20 | |
| Disinfection spray width(m) | 6 | |
| Battery(/) | lithium battery | |
| Charging mode(/） | DC charging pile , Portable charger ,Vehicle charging | |
