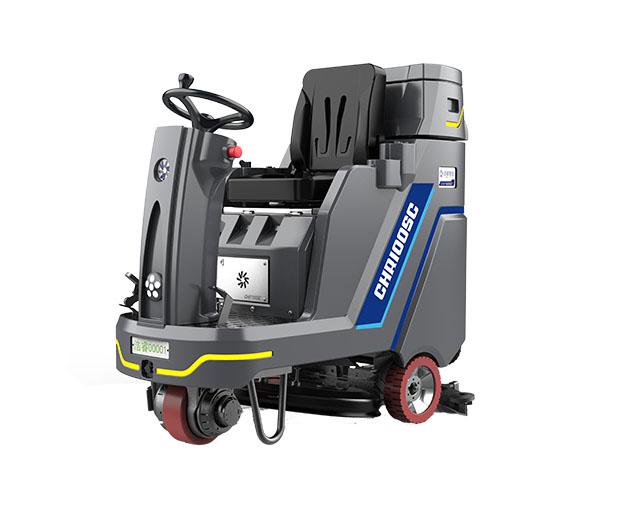

CHR100SC
Washing Machine
Main purpose
CHR100SC floor washing machine is a high-efficiency floor washing machine with the function scraping. It is suitable for the cleaning of shopping malls, warehouses, underground garages, factories, airports, subway stations and other places,and can meet the work needs of customer.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function Introduction
01
Safety and environmental protection
The maintenance free lead-acid battery is used as the power source, which is safe and reliable.
02
Flexible steering
The front wheel drive mode can realize 90 ° in-situ steering, which is flexible and convenient.
03
CAN bus control system
The control system adopts can bus control system, with simple circuit and accurate control.
04
Negative pressure protection of sewage tank
A negative pressure sensor is installed inside the sewage tank to monitor the negative pressure value in the tank at all times.
05
Strong endurance
It can work continuously for 6 hours per charge.
06
The pressure of the brush to the ground is constant
During operation, the system automatically adjusts the brush height to ensure constant pressure on the ground.
07
Precise water volume control system
The water spray quantity is not affected by the water level of the water tank and the operation speed, and the cleaning effect and operation time are brought into full play.
08
Simple design and safe operation
One button operation design, simple and safe operation.
Application Scenario
CHR100SC floor washing machine is a high-efficiency floor washing machine with the function scraping. It is suitable for the cleaning of shopping malls, warehouses, underground garages, factories, airports, subway stations and other places,and can meet the work needs of customer.
Parameter List
| Project | Parameter | |
|---|---|---|
| Car model | CHR65SCAI | |
| Product Parameters | Dimension(mm) | 1120×580×1150 |
| Cleaning width(mm) | 510 | |
| Gross weight (kg) | 227 | |
| Clean water tank volume(L) | 65 | |
| Dustbin volume(L) | 50 | |
| Suction width (mm) | 760 | |
| Maximum power(W) | 1500 | |
| Driving speed (Km/h) | 0-4 | |
| Operating temperature (℃) | 1-45 | |
| Battery capacity (Ah) | 24V/120AH | |
| Battery life(H) | 3-4 | |
| Security system | Lidar, single point radar, depth camera, monocular camera, ultrasonic sensor, anti-collision wheel, anti-collision sensor | |
