Function introduction
01
Bag dust removal
Dry bag dust removal system, which can operate all day.
02
The standard 240L garbage can can be replaced quickly
The standard 240L garbage can can can be transferred and replaced quickly.
03
Air circulation back blowing
The air circulation back blowing structure will not produce secondary pollution of wind and dust during cleaning operation, so as to improve the suction efficiency.
04
Hand held auxiliary straw
Dust collection can be carried out in green belts, drainage pits and other places.
05
Operation comfort
① 270°panoramic glass structure, wide operation vision, cold and warm split air conditioning.
② Equipped with car radio and MP3 player.
③ The reversing image can observe the rear safety in real time.
Application scenario
Self following auxiliary straw suction operation in sidewalks, corners of parks and scenic spots, back streets and alleys and other areas; Cleaning of urban auxiliary roads, secondary roads, some main roads, parks, scenic spots, scenic spots, industrial parks, airports, high-speed railway squares, etc
parameter list
| project | parameter | |
|---|---|---|

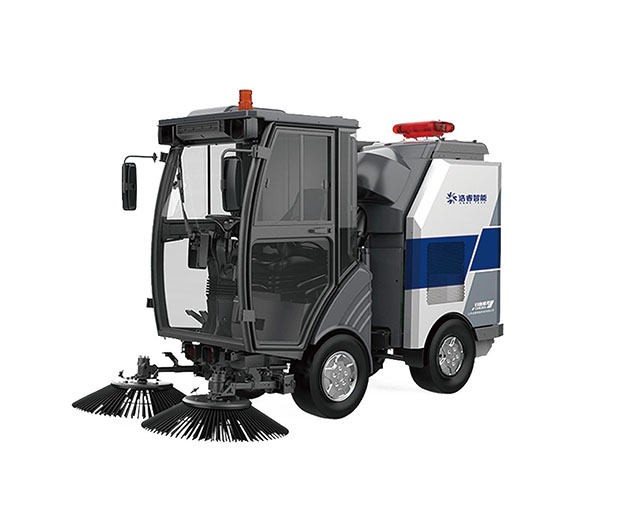

| Car model | CHR20SEV | |
| Product parametersl | Overall dimension | 3250 (excluding brush 2970) ×1130×2130 |
| Wheelbase (mm) | 1200 | |
| Minimum turning radius mm turning radius (mm) | 2150 | |
| Maximum total mass (kg) | 1850 | |
| Curb weight (kg) | 1450 | |
| Water tank volume (L) | 150 | |
| Dustbin volume (L) | 240 | |
| Cleaning width (m) | 1.1 ~ 1.8 | |
| Working speed (km / h) | 1 ~ 10 | |
| Maximum speed (km / h) | 16 | |
| Suction capacity (mm) | 45 (equivalent diameter at a density of 2.7g/cm3) | |
| Engine mode (/) | perkins403d-11 | |
| Engine rated power (kW / RPM) | 18.4/2800 | |
