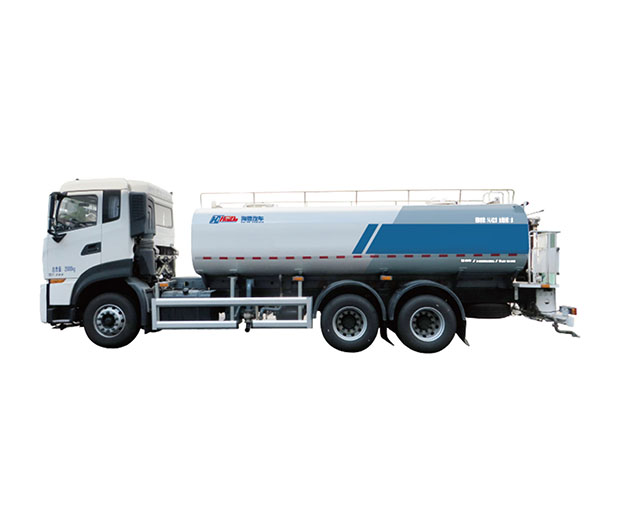

CHD5252GSSDFE6

sprinkler

Main purpose

Hotline:

+86-15753570919

Function introduction


  • 01

    Leading technology

    The water tank is equipped with a low water level alarm system, and is equipped with a left and right central column-shaped side flushing device, and the nozzle can be adjusted arbitrarily at a full angle of 360°. The rear workbench is equipped with a high-spray greening water gun, with auxiliary fire-fighting function, and can be formed into a column or mist as required. There is a self-circulating loop in the water system, which can be used to melt the snowmelting agent in winter.

    It has various functions such as road watering, road flushing, garden spraying, emergency fire fighting and so on.

    Pure electric drive, energy saving and environmental protection, zero emission, no pollution.

  • 02

    One-key intelligent control

    The whole car function adopts a one-key operating system, with front flushing, rear water spraying functions, and adjustable width.

  • 03

    Standard 304 stainless steel box

    The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.

  • 04

    Ultra-wide working width

    The sprinkler width is greater than 16 meters, and the hedging width is greater than 24 meters, leading the industry

  • 05

    Working devices are independent of each other

    The high-pressure water flow can be independently sprinkled and rinsed left and right, and the operation is simple.

  • 06

    Various optional configurations

    1. Optional front intelligent sprinkler.

    2. Optional different styles of vehicle exterior signs;

    3. Optional rear circular nozzle;

    4. Optional coil assembly;

    5. Optional left and right greening irrigation devices;

    6. Optional top greening irrigation device;

    7. Optional without operation indicator;

parameter list

projectIndicators and Parameters
vehicle modelCHD5252GSSDFE6
Chassis modelDFH1250D4
DimensionsCar length  mm
9825(Standard),9845、10285、10305(Optional smart sprinkler)
car width mm2500
car high mm
3190(Standard),3075(select configuration)
wheelbaseFront axle - rear axle mm4350+1350
engine modelD6.7NS6B 290(Standard), DDi75E350-60、 DDi75E300-60(select configuration)
Chassis Engine Rated Power/RP (kW/(r/min))213/2300(Standard),257/2300、220/2300(select configuration)
Chassis engine displacement (ml)6700(Standard),7500、7500(select configuration)
curb weight   kg11150
Rated loading mass  kg13720
maximum total mass  kg25000
Effective volume of water tank  M314.4
sprinkler system sprinkler flow L/min500-800
Sprinkler width  m≧16
 flush width m
≧24
 water gun range m38
Sprinkling speed Km/h0-20
