Function introduction
01
Leading technology

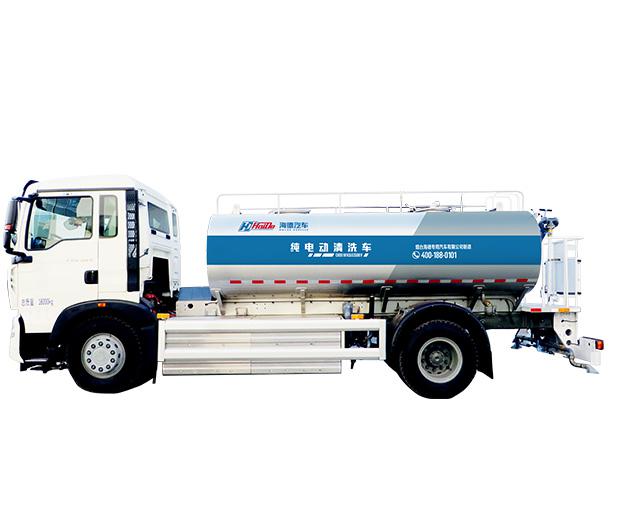

The water tank is equipped with a low water level alarm system, and is equipped with a left and right central column-shaped side flushing device, and the nozzle can be adjusted arbitrarily at a full angle of 360°. The rear workbench is equipped with a high-spray greening water gun, with auxiliary fire-fighting function, and can be formed into a column or mist as required. There is a self-circulating loop in the water system, which can be used to melt the snowmelting agent in winter.
It has various functions such as road watering, road flushing, garden spraying, emergency fire fighting and so on.
Pure electric drive, energy saving and environmental protection, zero emission, no pollution.
02
One-key intelligent control
The whole car function adopts a one-key operating system, with front flushing, rear water spraying functions, and adjustable width.
03
Standard 304 stainless steel box
The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.
04
Ultra-wide working width
The sprinkler width is greater than 16 meters, and the hedging width is greater than 24 meters, leading the industry
05
Working devices are independent of each other
The high-pressure water flow can be independently sprinkled and rinsed left and right, and the operation is simple.
06
Optional
1. Optional no high pressure cleaning device;
2. Optional arrow-type work indicator light;
Application scenarios
It can be widely used in daily spraying and cleaning operations in highway, municipal, sanitation and other departments.
parameter list
project | Indicators and Parameters | |
Vehicle parameters | vehicle model | CHD5181GQXSQBEV |
Dimensions (L×W×H)(mm) | 9720(9660,8630)×2520×2910 | |
front suspension/rear suspension (mm) | 2300/2150 | |
Approach angle/Departure angle(°) | 11/11 | |
total mass(kg) | 18000 | |
curb weight(kg) | 9160 | |
Rated contained mass(kg) | 8905 | |
Chassis parameters | Chassis parameters | SH1187ZPEVWZY1 |
wheelbase(mm) | 5200 | |
Wheelbase (front/rear)(mm) | 1860/1865 | |
top speed(km/h) | 89 | |
Total battery energy (Kwh) | 282 | |
Battery energy density (wh/kg) | 159 | |
Battery Type | LiFePO4 | |
battery model | -( CATL) | |
Drive motor model | TZ370XS-LKM1307(Suzhou Green Control) | |
Drive motor power (rated/peak) (Kw) | 185/251 | |
low pressure sprinkler | Sprinkler flow L/min | 500-800 |
Sprinkler width m | ≧16 | |
Flush width m | ≧24 | |
Gun range m | 38 | |
Sprinkling speed Km/h | 0-20 | |
high pressure cleaning | Cleaning speed Km/h | 0-20 |
cleaning width m | 2.5-3.5 | |
Cleaning angle (°) | each side30 | |
Cleaning water pressure MPa | ≧10 | |
Cleaning flow L/min | ≧152 |
