Function introduction
01
Safety
Large size aluminum alloy wheel hub and vacuum inflatable tire at the rear wheel, and large solid tire design at the front wheel for lighter steering; Mechanical braking to ensure driving safety. 2. High efficiency operation
02
High efficiency operation
The four side brush operation can reach a cleaning width of two meters, and the front side brush has anti-collision rotation function; Short range main brush, more efficient and energy-saving, lower failure rate
03
One machine for multiple purposes
The electric high-pressure flushing device of fog gun is optional.
04
Electric dust removal
Double barrel large area filter can effectively filter the dust when the main brush is cleaning; Double electric dust removal system to ensure smooth filter element; The easy replacement device of side brush can ensure that the side brush can be replaced in a few minutes
05
Convenient and fast
The lifting side brush and the main brush are electrically operated, which is easy to use and low maintenance cost; The front baffle of the main brush is lifted vertically, and the height can reach 80m, which can effectively clean larger leaves and stones.
06
Automatic shift drive
It is the first to use electronic automatic shift drive. The low-grade climbing can reach 5 °, and the high-grade speed can reach 20km / h, making long-distance operation possible
Application scenario
Parks, streets, stations, docks, municipal roads, property communities, warehouses, factory workshops, schools, stadiums, large venues, airports and other areas.
parameter list
| project | parameter | |
|---|---|---|

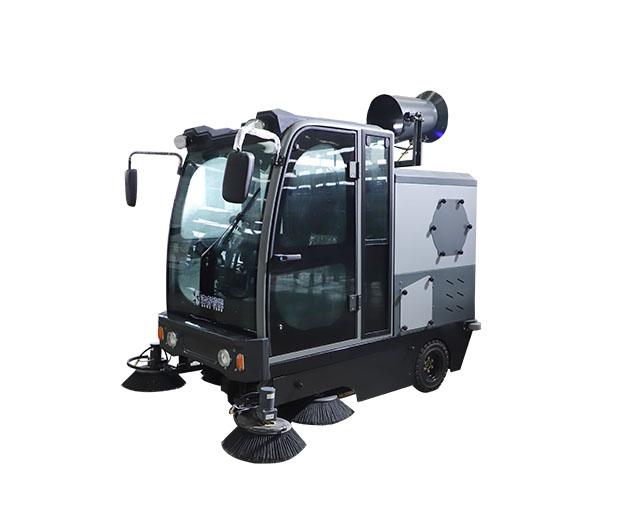

| Car model | CHR2100SEV | |
| Product parametersl | Dimension(mm) | 2300×1820×1970 |
| Totalmass(kg) | 880 | |
| Rated load(kg) | 260 | |
| cleaning width(m) | ≤2100 | |
| Sweeping speed(km/h) | ≤7 | |
| Walking speed(km/h) | ≤12 | |
| Cleaning power(kw) | 1+0.09*4+0.65 | |
| Driving power(kw) | 1.8 | |
| Climbing ability(%) | >20 | |
| Maximum efficiency(m²/h) | 18000 | |
| Main brush length /quantity(mm/) | 640/1 | |
| Side brush diameter/ quantity(mm/) | 500/4 | |
| Turning radius(mm) | 2170 | |
| Power configuration (v/ah) | 48/150 | |
| Water tank volume (L) | 200 | |
| Bin volume (L) | 220 | |
| Filter area(m²) | 12 | |
| Chargerspecification (SMART)(v/a) | 48/25 | |
| Continuous working time(h) | 6-8 | |
| High pressure water pump (kw) | 1.5 | |
