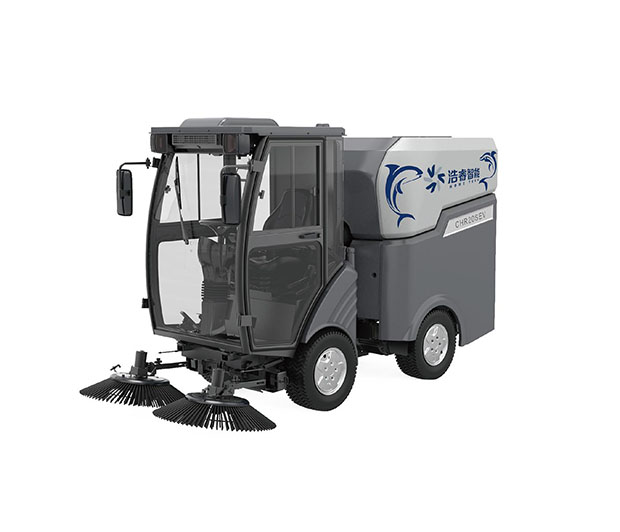

CHR20SEV
pure electric sweeper
Main purpose
Cleaning and cleaning of narrow roads such as urban auxiliary roads, airports, factories, squares, parks, back streets and alleys, sidewalks and communities.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function introduction
01
Bag dust removal
Special filter bag dust removal device is adopted, which has large filtering area, good ventilation, high filtering precision and clean exhaust.
02
The standard 240L garbage can can be replaced quickly
The standard 240L garbage can can can be transferred and replaced quickly.
03
Safety and stability
The power system adopts lithium battery pack and BMS management control to ensure the stable operation of the vehicle;
04
Flexible
Full hydraulic steering system is adopted, with simple structure, small turning radius, stable steering and flexible control.
05
One button operation
The whole vehicle adopts the controller for digital control, and the operation and recovery of the cleaning device and suction port can be carried out by pressing the key. The brush speed can be adjusted steplessly.
Application scenario
Cleaning and cleaning of narrow roads such as urban auxiliary roads, airports, factories, squares, parks, back streets and alleys, sidewalks and communities.
parameter list
| project | parameter | |
|---|---|---|
| Car model | CHR20SEV | |
| Product parametersl | Dimension(mm) | 3350×1160×2040 |
| Max Totalmass(kg) | 2050 | |
| Curb weight(kg) | 1550 | |
| Total power(kw/h) | 33.8 | |
| Maximum speed(km/h) | 20 | |
| Operation speed(km/h) | 1-8 | |
| Gradient(%) | 25 | |
| Trash can volume(L) | 240 | |
| Clean water tank volume(L) | 150 | |
| db Operation noise(A) | ＜73 | |
| Continuous operation time(h) | ≥6 | |
| Maximum sweeping width(mm) | 1800 | |
| Minimum turning diameter of climbing slope(mm) | 4500 | |
