Function introduction
01

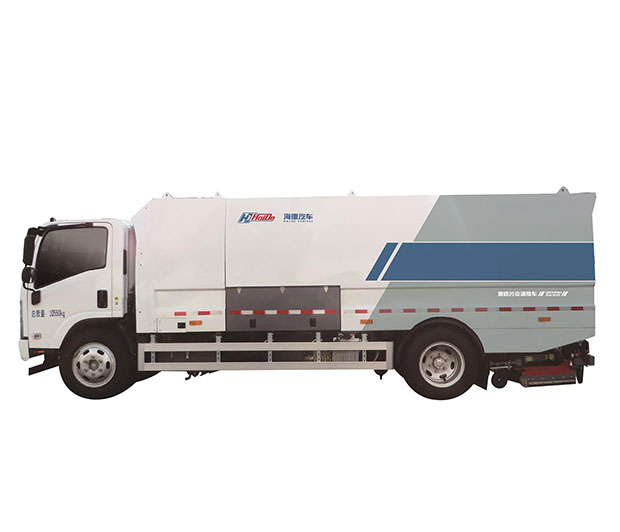

Isuzu Premium Chassis
The car adopts the most advanced Qingling light truck lengthened chassis in China. The wheelbase of the chassis is 4475mm and the engine power is as high as 151KW.
02
Hydrostatic drive technology
The chassis walking operation of the car is equipped with the hydrostatic drive traveling technology imported from Germany, which realizes the high-torque ultra-low-speed traveling of the vehicle to meet the needs of the vehicle's deep decontamination operations; low-speed traveling adopts automatic cruise control.
03
Imported parts
The hydraulic drive system adopts imported Linde variable pump and plunger motor; the AR high pressure water pump imported from Italy works stably and reliably.
04
Diversified functions
It has various working modes such as deep decontamination, sweeping, rear spray, left and right displacement of suction disc, and car washing.
05
Energy saving
The high-pressure water pump imported from Italy is driven by a variable pump. The high-pressure water feedback adjustment system can adjust the pressure of the water system according to the set pressure feedback, so the speed of the water pump can be automatically adjusted according to the needs of the work to obtain the required working pressure and flow. , reducing energy waste.
06
Pipeline injection purification device
The car is equipped with a water spray pipeline purification device, which uses the chassis' own air source to purify and spray the water spray pipeline and components through the control device to prevent damage to the components caused by water accumulation in the pipeline in winter.
Application scenarios
Deep cleaning operation:
It can solve the problem that the existing sanitation equipment cannot effectively remove road hardening, oil pollution and other pollutants. It is mainly used in road maintenance, biochemical treatment, emergency rescue, anti-haze and haze reduction and other fields;
Cleaning and sweeping operation:
In order to meet the needs of ordinary and fast work on the road, the car is also equipped with a right-side sweeping brush plate to thoroughly sweep and remove the garbage at the corners of the road. The sweeping function can quickly clean the road.
The vehicle can be widely used in the decontamination and cleaning operations of main roads, squares and wharfs in urban areas.
parameter list
| project | unit | Indicators and Parameters | |
| auxiliary engine | Chassis manufacturer | Qingling Motor Co., Ltd. | |
| Chassis model | QL1110ANMACY | ||
| drive type | 4×2 | ||
| Chassis wheelbase | mm | 4475 | |
| engine model | 4HK1-TCG60 | ||
| Engine rated power/speed | kW | 151 | |
| engine capacity | ml | 5193 | |
| Emission Standards | China's exhaust emission standard VI | ||
| Vehicle parameters | Vehicle curb weight | kg | 9300 |
| maximum total mass | kg | 10550 | |
| Overall dimension L X W X H | mm | 7840X2260X2845,2760 | |
| Theoretical maximum speed | km/h | 110 | |
| water tank volume | m³ | 5.2 | |
| trash can volume | m³ | 4.6 | |
| Working speed | km/h | 0～10 | |
| High pressure water system pressure | MPa | 30 | |
| Dumpster discharge corner | ° | ≥50 | |
