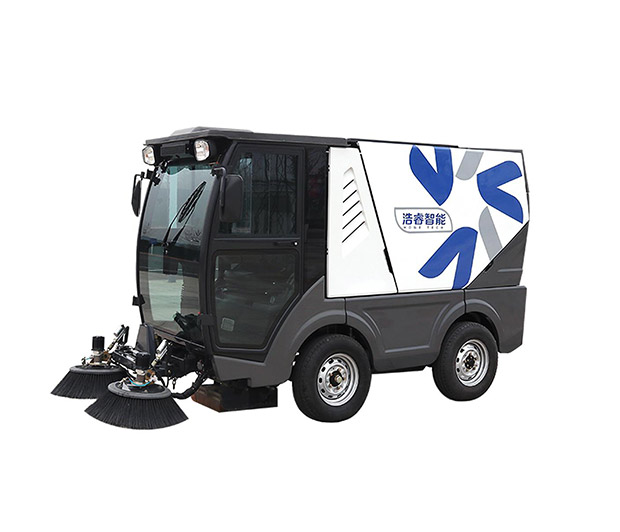

CHR22MEV
road sweeper
Main purpose
Chr22mev has the advantages of atmospheric appearance, stable driving, flexible operation and high efficiency. It can adapt to the cleaning and cleaning of urban auxiliary roads, airports, factories, squares, parks and other places, as well as the cleaning and cleaning of narrow roads such as back streets, alleys, sidewalks and communities.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function introduction
01
New appearance design
The modular decorative cover of the whole vehicle, Haorui intelligent classic spraying, enlarged logo, beautiful atmosphere and high brand recognition.
02
High function configuration
Large space cab, air conditioning, car radio (Bluetooth connection), mechanical suspension seat, reversing image, constant speed cruise, LED display of rear operation status, etc.
03
ECU control
The whole machine is controlled by distributed ECU bus, and the constant speed cruise control mode is adopted for transfer driving, which makes the operation more humanized. At the same time, it is equipped with service brake to ensure driving safety.
04
Blister process
The covering parts and decorative parts of the whole machine are made by blister technology, which not only has a beautiful appearance, but also reduces the weight of the whole machine.
05
Large capacity water tank
It is equipped with a large capacity water tank of 180 liters and a micro diaphragm pump. A water mist nozzle is set on the brush. During the cleaning operation, the water pump can be opened according to the road conditions to spray water and reduce dust, and the water volume can be adjusted separately.
06
Optimization and upgrading
CAE technology is used to analyze the structure of the whole machine, optimize the structure of parts, simplify the manufacturing process and improve the production efficiency.
07
Optimize energy saving
Two speed gearbox, high and low gears can be switched freely according to the working conditions to improve the transmission efficiency, and match the working conditions of the motor and the power system to the most economical state.
08
Maintenance free
The structure of most rotary moving parts adopts maintenance free bearings, which eliminates the steps of oil injection and lubrication, so as to reduce the maintenance workload of users and reduce the maintenance cost.
09
High efficiency suction system
Use CFD fluid simulation technology to optimize the fan and suction pipeline, cooperate with sewage circulation to reduce dust, improve suction efficiency and reduce energy consumption.
10
Stable chassis system
The rear rear drive is adopted, and the front and rear leaf spring integral frame chassis is equipped with hydraulic steering to ensure its normal driving and operation on undulating roads and harsh working conditions. The two-speed gearbox and high transmission ratio make it have greater traction. Under the full load condition of 1000L super large dustbin, it can adapt to all kinds of ramps and pass easily.
11
Security guarantee
The program assisted anti sliding slope braking system adopts motor assisted braking to ensure the safety of the vehicle when parking on the half slope; Unloading anti overturning function. During high-level unloading, auxiliary support oil cylinder is equipped for body support to prevent body overturning.
12
Wide application scenarios
With its own small and flexible advantages, it can adapt to the cleaning and cleaning of urban auxiliary roads, airports, factories, squares, parks and other places. At the same time, it can be competent for the cleaning and cleaning of narrow roads such as back streets, alleys, sidewalks and communities.
Product introduction
Chr22mev has the advantages of atmospheric appearance, stable driving, flexible operation and high efficiency. It can adapt to the cleaning and cleaning of urban auxiliary roads, airports, factories, squares, parks and other places, as well as the cleaning and cleaning of narrow roads such as back streets, alleys, sidewalks and communities. It solves a variety of complex road conditions that large road sweepers can't cope with. The operation noise is low and wet dust reduction is adopted, which will not cause noise pollution and secondary dust pollution to the surrounding area. It performs better in the competitive products of the same industry.
parameter list
| parameter | unit | CHR22MEV |
|---|---|---|
| Overall dimension | mm | 3950×1340×2120 |
| wheelbase | mm | 1400 |
| Ground clearance | mm | 180 |
| Turning radius | mm | 4500 |
| Maximum total mass | kg | 2900 |
| curb weight | kg | 2060 |
| Water tank volume | L | 180 |
| Maximum climbing gradient | % | 20 |
| Sweeping width | mm | 1100-1900 |
| Operation speed | km/h | 1-10 |
| Maximum speed | km/h | 25 |
