Function introduction
01
Multi-specification cleaning
The equipment can be used for standard garbage of 120L, 240L, 660L and other specifications for washing buckets. It can clean 1 to 2 120L or 240L trash cans at the same time, and can also clean one 660L trash can.
02
High-efficiency bucket reversing device
The unique and efficient bucket lifting device can reduce the labor intensity of staff, improve the efficiency of hanging buckets, and meet the needs of users to carry buckets for 120L, 240L, 660L and other specifications. The unique turning cylinder and high-quality two-way balance valve ensure the continuous, stable and safe turning of the trash can.
03
Advanced cleaning method
External cleaning of trash cans:
a. Front side cleaning of trash cans: High-quality rodless cylinders are used to drive high-pressure water spray components for up and down reciprocating high-pressure cleaning.
b. Cleaning of trash can lids: High-quality rodless cylinders are used to drive high-pressure water spray components for horizontal and left-right reciprocating high-pressure cleaning.
c. Cleaning on the left and right sides of the trash can: High-quality rodless cylinders are used to drive high-pressure water spray components for up and down reciprocating high-pressure cleaning.
d. Cleaning on the rear side of the trash can: high-quality cylinder-driven high-pressure water spray components are used for swing-type high-pressure cleaning;
Cleaning inside the trash can:
Using double-inlet high-pressure rotating nozzles, 360° rotating high-pressure cleaning inside the trash can to ensure comprehensive high-pressure cleaning inside the trash can.
04
Multi-device blessing
Equipped with a long-bar high-pressure water gun, which can effectively reduce the spray of the water gun. Equipped with a high-pressure ceramic rotating nozzle, it can be manually cleaned for stubborn stains.
Equipped with a hose reel, it is convenient for users to freely use the water gun for auxiliary operations such as long-distance cleaning within 5m of the barrel washing station.
The dedicated high-voltage power distribution system drives the motor to run smoothly.
05
Leading technology
The barrel washing station adopts a fully enclosed high-pressure cleaning method, equipped with imported high-pressure plunger water pumps, with reliable quality and high cleaning efficiency.
The cleaning mode can be selected according to the cleanliness of the garbage:
light cleaning, medium cleaning, heavy cleaning, and an emergency stop button is set. The cleaning can be stopped in an emergency, and the normal operation state can be automatically reset after the emergency stop mode is released.
Compared with traditional manual cleaning, the equipment has the characteristics of high cleaning efficiency, easy operation and high resource utilization.
Remote control system: The system program can be remotely upgraded according to user requirements. At the same time, it is equipped with a color LCD screen, through which the operation status can be fully monitored, and the operation parameters can also be set according to requirements.
Product Description
With the increase of urbanization, more and more population, people's living quality is getting higher and higher, and the resulting food waste is also increasing.
Along with it, there is also a storage device for food waste - trash cans, which are used for dry cleaning.In modern cities, after-dinner trash cans are the most common kitchen waste storage device, but due to the;particularity of kitchen waste, the grease in the kitchen waste will adhere to the surface of the trash can, which not only emits peculiar smell, but also makes it difficult to store food waste. Cleaning affects the appearance of the city. In order to solve this problem, Yantai Haide Special Vehicle Co., Ltd. specially launched the latest research and development of trash can cleaning equipment - a fixed bucket washing station.

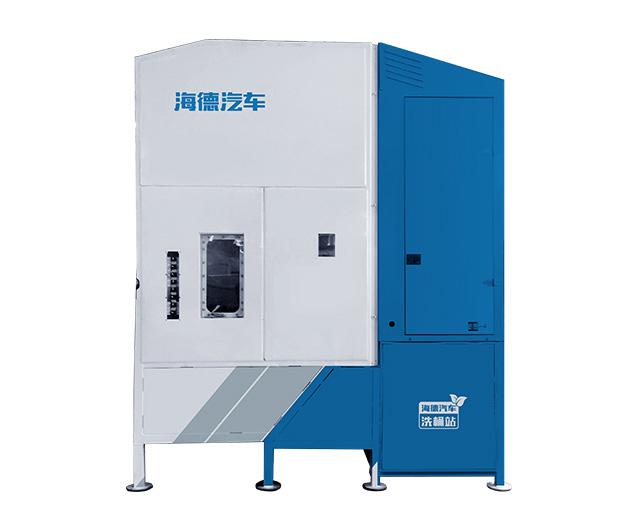

The fixed bucket washing station is a kind of fixed bucket washing equipment customized by Yantai Hyde Special Purpose Vehicle Co., Ltd. It is mainly used for centralized cleaning and cleaning of trash cans. Standard garbage can be used for bucket washing, and it can be set at a special bucket washing point to clean the trash can. Compared with traditional manual cleaning, this equipment has the characteristics of high cleaning efficiency, easy operation and high resource utilization.
parameter list
project | Indicators and Parameters |
Dimensions (L×W×H) ㎜ | 2700×2100×3000 |
High pressure water pump rated pressure MPa | 14 |
Hydraulic system working pressure MPa | 16 |
Volume of clean water tank m³ | 1 |
Motor power kw | 30 |
Supply voltage V | AC380 |
Cleaning efficiency % | 90 |
Washing bucket size L | 120L、240L、660L |
Working time of bucket washing | Mode is optional |
The temperature of the water in the heating barrel | 40-80℃ |
Number of trash cans in a single cleaning | 2 120L或240Lstandard barrel；1 660Lstandard barrel |
One working cycle time | ≥1 minute (adjustable according to the actual situation) |
water supply requirements | DN65 Fire Hydrant Interface |
