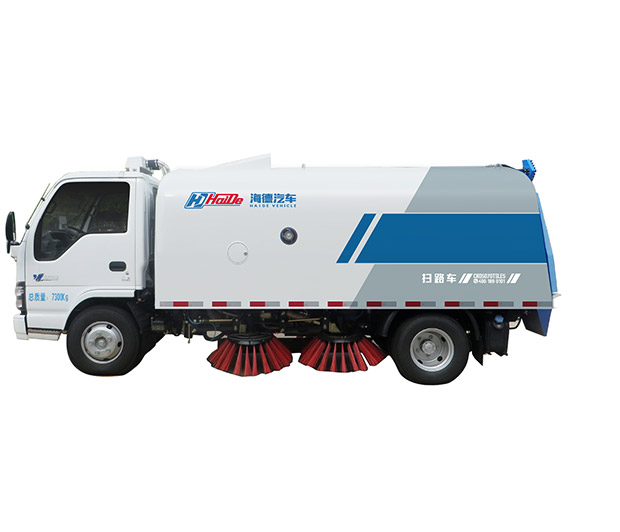

Function introduction
01
Large angle of discharge angle
The garbage of the road sweeper is mostly sticky garbage, which is difficult to remove directly. In order to maximize the unloading angle of the vehicle, the water tank of the vehicle is designed at the bottom of the garbage can. The volume of the clean water tank at the bottom of the garbage can is as high as 1100L, which makes The bottom plate of the garbage box has a pre-tilt angle of more than 10 degrees, and the lifting angle of the garbage box body is 53 degrees, which makes the discharge angle of the garbage as high as 60 degrees or more.
02
Safe and reliable hydraulic system
The hydraulic valve set used is a cartridge type hydraulic valve, which has the advantages of compact structure, light weight, powerful function, high reliability and convenient maintenance; all the hydraulic pipe ferrule joints are formed at one time by the pipe end forming machine, and the special sealing ring Combination: The pipe end forming machine commonly used in hydraulic pipelines in Europe and the United States is selected. All the pipe ends of the steel pipe are pressed and formed at one time, and are equipped with a special sealing ring to resist pulling out, and the pipeline has no leakage phenomenon; the lifting cylinder is equipped with a special hydraulic pressure. The lock, a special hydraulic lock jointly developed with Beijing Shunwei, can realize functions such as lifting synchronization, stable descent, and self-locking.
03
Automatic obstacle avoidance cleaning system
The left and right front cleaning brushes have automatic obstacle avoidance protection function and automatic reset function: when the sweeping disk encounters an obstacle, it can automatically retract to avoid and reset automatically. This function effectively solves the problem that the cleaning device is easily damaged.
04
Advanced monitoring system
Equipped with advanced color TV monitor: in order to observe the working conditions of the vehicle in time, observation probes are installed at the rear and right side of the vehicle. The operation and conversion of the camera is extremely convenient, which can provide the operator with the quality of the cleaning operation and the image of the rear of the vehicle in time. function.
05
Full floating suction disc
The suction cup adopts a fully floating connection and a unique balance mechanism, which can be automatically adjusted according to the height of the ground to ensure that the gap between the suction cup and the road remains unchanged, so that the vehicle can always maintain a good working effect.
06
Large area filter device
A large-area filter screen is set on the top of the box: in order to maximize the reduction of the suction capacity caused by the blockage of the air flow, the car is equipped with a large-area stainless steel filter screen on the top of the garbage can to block and filter the air flow. The garbage with large volume and small area is provided with a diversion groove on the top of the box to improve the dust reduction effect, make the garbage accumulate evenly, and increase the effective capacity.
parameter list
| project | Indicators and Parameters | ||
| External dimension parameters（mm） | L×W×H | 5765×2100×2510 | |
| wheelbase | 3360 | ||
| Wheelbase (front/rear) | 1504/1425 | ||
| front suspension/rear suspension | 1015/1390 | ||
| Quality parameter(kg) | maximum total mass | 7300 | |
| total mass | 5170 | ||
| auxiliary engine | model | QL1070BUHACY | |
| Manufacturer | Qingling Motor Co., Ltd. | ||
| engine model | 4KH1CN6LB | ||
| Engine rated power (kw） | 88 | ||
| auxiliary engine | model | Qingling4JB1-TCH | |
| Rated power（kw/rpm） | 68/3000 | ||
| Vehicle parameters | Garbage bin volume | 5m3 | |
| Tank volume（L） | 1100 | ||
| Maximum cleaning width（mm) | 3000 | ||
| Cleaning speed（km/h） | 3～15 | ||
| Maximum cleaning capacity（m2/h） | 45000 | ||
| Maximum suction capacity （mm） | 110 | ||
| Maximum discharge angle（°） | 60 | ||
| Hydraulic system | Hydraulic oil pump displacement（ml） | 8 | |
| Rated speed of hydraulic oil pump（r/min） | 2000 | ||
| Hydraulic tank volume （L） | 48 | ||
