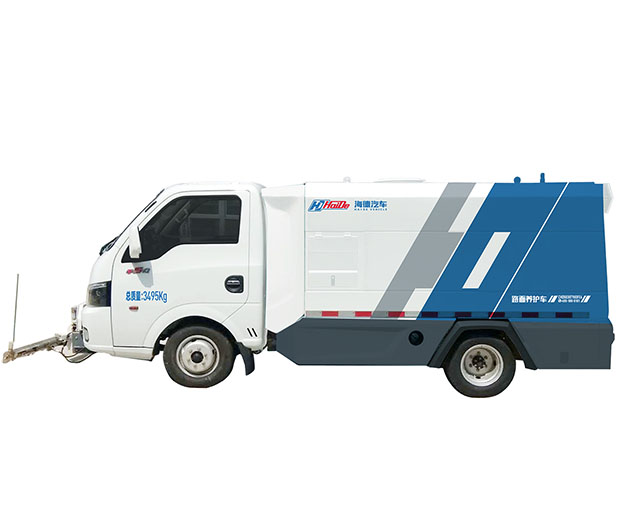

CHD5030TYHDFE6

pavement maintenance vehicle

Main purpose

Hotline:

+86-15753570919

Function introduction


  • 01

    Intelligent control

    The system adopts CAN communication intelligent control, the information transmission is high-speed, reliable, and the anti-interference ability is strong.

  • 02

    Independent working power

    The power of the bodywork is independent, and the water spraying operation and the driving of the vehicle do not affect each other;

  • 03

    Large flow and high pressure

    The high-pressure water pump is imported, with large flow and high pressure;

  • 04

    Various ways of adding water

    The water filling interface adopts two methods: fire hydrant and top;

  • 05

    Excellent working performance

    The width of the front flushing operation can be adjusted up, down, left and right to facilitate the flushing of the road surface. In addition, there are side flushing

    nozzles on the left and right sides of the flushing frame to facilitate the flushing of roadside garbage.

    The single-point flushing operation distance is long, and it

    can also be adjusted up and down, left and right, which can effectively remove the accumulated garbage on the roadside. All operations are controlled in the cab.

    Equipped with a hand-held spray gun and a hose reel as standard, the extension length of the coil is up to 15 meters, which is used for cleaning vehicles and removing small advertisements on the roadside.

  • 06

    Standard stainless steel material

    The clean water tank is all made of high-quality stainless steel with strong corrosion resistance.


  • Optional

    1. Hand-held cart: for the convenience of flushing pedestrian auxiliary roads;

    2. Hand-push cleaning tray: In order to clean up the viscous garbage on the road (such as chewing gum, etc.);

    3. Water heating device; the maximum output temperature is ≥90℃. In order to facilitate the removal of strong adhesive garbage, the car can be equipped with a water heating function, which can make the heated water temperature as high as 90 degrees or more.

    4. Lifting fog cannon: A small fog cannon is added to the road maintenance vehicle, which can spray both sides and the back, and the disinfection distance can reach 15 meters.

    5. Tail spraying device: Nozzles are also installed at the tail of the vehicle, and different spraying methods can be selected according to needs. It can be used for disinfection, sterilization and dust suppression of roads, squares and back streets.

parameter list

project

Indicators and Parameters

Chassis parameters

Chassis model

EQ1035SJ16QC

Chassis manufacturer

China Dongfeng Motor Corporation Limited

Chassis wheelbase(mm)

2600

Wheel base (front/rear) (mm)

1369/1214

Maximum speed(Km)

100

engine model

LJ4A15Q6

Rated power/speed(kW/(r/min))

83/6000

Vehicle parameters

Dimensions(mm)

5425X1790X2095

Maximum total mass(Kg)

3495

Fresh water tank volume(m3)

2.5

Cleaning width(mm)

1750

The maximum pressure of the pump

≥15Mpa

The maximum flow of the pump

≤50L/min
