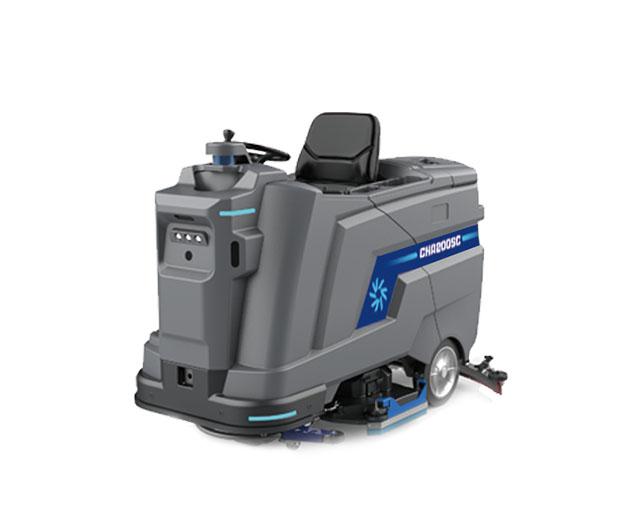

CHR200SC
Electric Floor Washer
Main purpose
It is applicable to the cleaning of shopping malls, warehouses, hospitals, hotels, underground garages, airports, subways and many other places. It has many modes, such as economy, normality, enhancement, polishing, cleaning and so on
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function Introduction
01
Safety and environmental protection
The whole machine adopts maintenance free lead-acid battery as the power source, which is safe and reliable.
02
Flexible steering
The wheel drive mode can realize 90 ° in-situ steering and flexible square.
03
CAN Bus control system
The control system adopts CAN bus control system, with simple circuit and accurate control.
04
Efficient cleaning
Install 900m wide disc brush, with an area of 400㎡ per plot.
05
Negative pressure protection of sewage tank
A negative pressure sensor is installed inside the sewage tank to monitor the negative pressure in the water at all times.
06
The pressure of the brush to the ground is constant
The system automatically adjusts the brush height to keep the pressure on the ground constant.
07
Precise water volume control system
The water level of the water spray tank and the operation speed affect the cleaning effect and operation time.
08
Strong endurance
It can work continuously for 7-8 hours per charge.
Application Scenario
It is applicable to the cleaning of shopping malls, warehouses, hospitals, hotels, underground garages, airports, subways and many other places. It has many modes, such as economy, normality, enhancement, polishing, cleaning and so on
parameter List
| Project | Parameter | |
|---|---|---|
| Car model | CHR200SC | |
| Product Parameters | Dimension(mm) | 1900×940×1440 |
| Weight(including accessories)(kg) | 480 | |
| Working width of main brush (mm) | 900 | |
| Suction working width (mm) | 1060/1200 | |
| Clean water tank/sewage tank ( L ) | 240/240 | |
| Main brush speed ( R / min ) | 160 | |
| Rated power ( W ) | 2300 | |
| Traction motor ( W ) | 650 | |
| Power Supply ( V ) | 36 | |
| Suction fan ( W ) | 760 | |
| Noise ( max ) | ≤66dB> | |
| Electric quantity ( Ah ) | 200 | |
| Cleaning area(㎡/h) | 5400 | |
| Heavily cleaned working area (㎡/h) | 3800 | |
| Ground contact pressure of main brush in economic (g/c㎡) | 24 | |
| Enhanced mode main brush touchdowb pressure (g/c㎡) | 24 | |
