Intelligent small sanitation robot equipment, urban capillary solution.

CHR31M

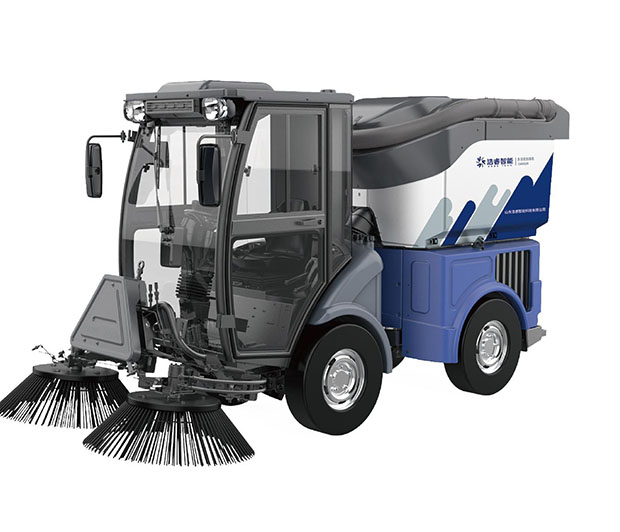

CHR31M multifunctional road sweeper

Main purpose

Hotline:

+86-15753570919

Function introduction

  • 01

    Safe and stable

    The engine and key hydraulic parts are imported from the world's first-line brand products with stable performance and reliable quality.

  • 02

    Two way hinged structure

    The whole machine adopts two-way hinged structure design, with flexible steering and dexterous operation.

  • 03

    Strong power

    Equipped with 4WD and 2WD systems, it can provide strong power and efficient operation system as required.

  • 04

    One machine with multiple functions

    It can realize the functions of cleaning, washing, mowing, third brushing, pushing snow, sweeping snow, lifting snow and spreading. One machine can realize full-time operation.

Application scenario

Cleaning and cleaning of urban auxiliary roads, secondary trunk roads, some main roads, park scenic spots, scenic spots, industrial parks, airports, high-speed railway squares and other roads.

parameter list


projectparameter
Car modelCHR31Mmin
Product parameterslDimension(L*W*H)(mm)3665×1220×2170
Wheelbase(mm)1415
Minimum turning radius(mm)5700
Maximum total mass(Kg)2700
Curb Weight(Kg)1970
Water tank volume(L)150
Cleaning width(mm)2150
Working speed (Km/h)1~10
Maximumspeed twodrive /fourdrive(Km/h)30/15
Maximum suction density(mm)120 (equivalent diameterat adensityof 2.0 g/cm3)
Engine power(/)30.6kw/2600rpm
