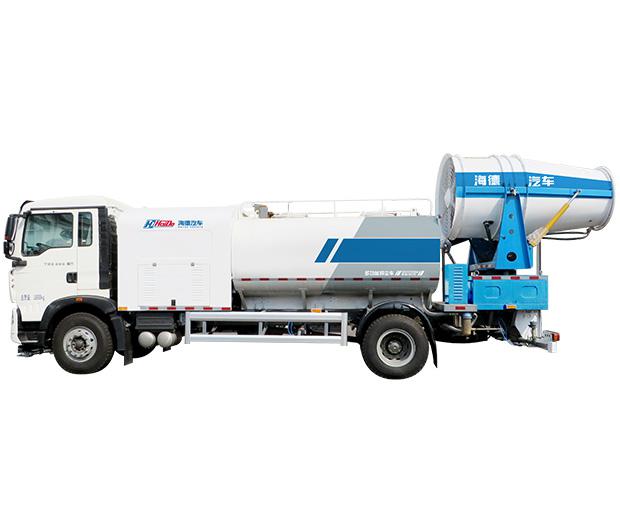

Function introduction
01
Multifunctional
It has many functions such as moisturizing, cooling, pavement watering, road flushing, garden spraying, and emergency fire fighting for highways and sports venues.
Widely used in urban air purification, dust in coal yards, port stockpiles, construction sites, etc., public places such as airports, highways, stations, docks, and landfills, etc.
02
Corrosion-resistant box
The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.
03
A spray system with excellent performance
The spray system adopts double spray rings and adjustable fog size nozzles, with strong wind, high range (far) and good penetration.
04
Safety protection device
The high-voltage line of the vehicle generator set is equipped with a safety short-circuit protector to prevent safety accidents when the line is worn, flooded or other short-circuit conditions;
The multi-protection rear work platform is equipped with a safety frame protection device;
Rear emergency stop button, safety alarm device, safety short-circuit protection system Multiple safety protection systems ensure the safety of vehicle operation.
05
Intelligent Operating System
Intelligent speed control system, with manual (remote control) and remote control two modes of operation, simple and intelligent operation;
Adopt one-key operating system, with front flushing, rear watering function, adjustable width;
06
Leading technology
Single engine power, energy saving and environmental protection. Equipped with left and right central column-shaped side flushing devices, the nozzle can be adjusted at any angle of 360°; the water tank is equipped with a low water level alarm system; the vehicle adopts a self-priming water pump with self-priming function, and the water system has a self-circulating loop, which can be used for melting in winter snow melting agent;
Pneumatic system is used in the waterway of the whole vehicle,
which is safe, reliable, convenient and flexible to operate; stainless steel vertical multi-stage centrifugal water pump has high lift, long service life and corrosion resistance; it is equipped with high-spray greening water gun, which has auxiliary fire-fighting function and can be pressed into a column or mist.
07
Optional configuration
The vehicle can be equipped with a snow shovel, which is used for snow removal in winter, and one vehicle can be used for multiple purposes.
parameter list
project | unit | Indicators and Parameters | ||
CHD5182TDYZQN6D | - | Chassis model: ZZ1187N501GF1CL | ||
Dimensions mm | Car length | mm | 10325 | |
car width | mm | 2496 | ||
car high | mm | 3840 | ||
wheelbase | Front axle - rear axle | mm | 5200 | |
Chassis engine model | MT07.29-60 | |||
Chassis Engine Rated Power | kw | 216/2200 | ||
type of fuel | LNG | |||
maximum total mass | kg | 18000 | ||
curb weight | kg | 11200 | ||
Rated contained mass | kg | 6605(6670) | ||
spray system | Range (static wind) | m | Level100m | |
spray water pressure | Mpa | 1.5-3 | ||
Spray water flow | M3/h | 8 | ||
fog titer | um | 50--200 | ||
jet pitch angle | ° | -10°-45° | ||
Horizontal rotation angle | ° | 0-320° | ||
sprinkler system | sprinkler flow | L/min | 500-800 | |
Sprinkler width | m | ≥16 | ||
flush width | m | ≥24 | ||
water gun range | m | 38 |
