Function introduction

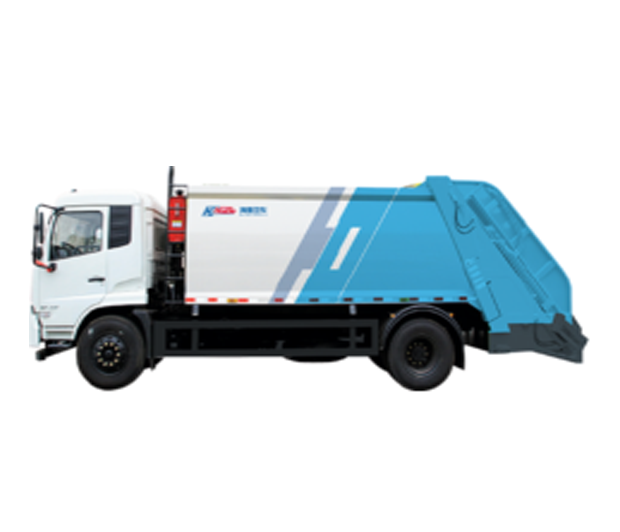

Mainly used for collecting, compressing, and transporting urban household waste,It can also be used for collecting, compressing, and transporting some light and scattered industrial and agricultural waste.Equipped with a specialized device for combining the device and power of the vehicle with a fixed container for garbage collection (such as a garbage bin),Self loading, compression, transportation, and dumping of garbage
Application scenarios
Collection, compression and transportation of wet waste from restaurants, and vegetable markets.
parameter list
| Chassis model | EQ1250GL6DJ |
| Fuel type | Diesel fuel |
| Chassis wheel base | 4350+1350mm |
| Engine model (standard configuration) | YCS06245-60A |
| Engine power | 180 kW |
| Engine displacement | 6234 ml |
| Frame width | 860 mm |
| Length/Width /Height | 10250*2550*3520mm |
| Superstructure Length/Width/Height | 8200*2500*3040mm |
| Superstructure weight | 6320 kg |
| Curb weight | 13820 kg |
| Rated weight | 10985 kg |
| GVW | 25000 kg |
| Effective volume | 20 m³ |
| Working cycle time of filling mechanism | ≤20 s |
| Discharge working cycle time | ≤55 s |
| Lifting device working cycle time | ≤10 s |
| Max pressure of hydraulic system | ≥20 MPa |
| Type of loading garbage can | 120L/240L/660L |
