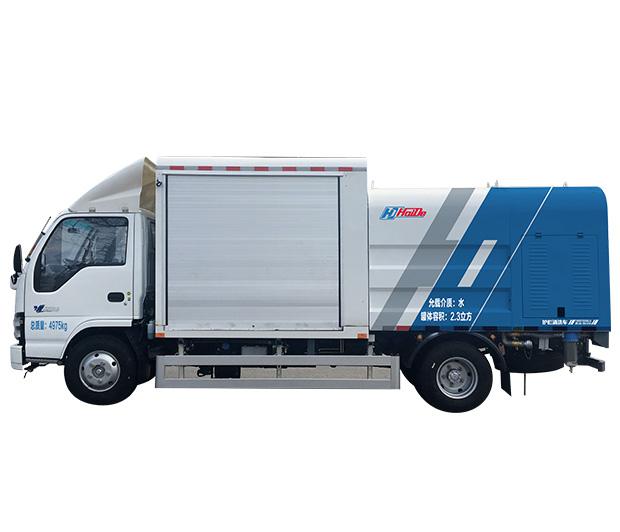

CHD5073GQXQLE6

Two-way guardrail cleaning vehicle

Main purpose

Hotline:

+86-15753570919

Function introduction


  • 01

    Industry-leading work mode

    The guardrail cleaning device can work on the left or right side of the body to ensure that the vehicle does not run backwards during operation, has little impact on traffic, and abides by traffic laws.

    The road guardrail is in the middle of the four roller brushes, and both sides of the guardrail are cleaned at the same time.

    The working cleaning device adopts a total of 4 sets of roller brushes, and each 2 roller brushes run in opposite directions to reduce the dead angle of cleaning. The distance between the roller brush and the guardrail can be adjusted according to the thickness and cleanliness of the guardrail. The left and right slewing supports and slide rails are set in the middle, and the lifting and rolling structure is adopted. In the driving state, the guardrail device is retracted into the body. When the non-working state is not in operation, the cleaning device is not visible outside. The left and right sides are closed by hydraulically driven rolling shutters. Neat and beautiful. Increase the service life of the device.

  • 02

    Superior performance

    The guardrail cleaning truck adopts the main and auxiliary dual-engine structure, which has strong power and stable work.

    The main engine of the chassis is equipped with a professional transfer gearbox, so that the vehicle can maintain a stable driving speed in the range of 0-10km/h, and the cleaning efficiency of the guardrail is higher, which reduces the difficulty of the driver's control.

    The rear auxiliary engine is equipped with a transfer gearbox, which drives the high-pressure water pump and working devices, with a cleanliness level of ≥90%. The independent high-pressure flushing system ensures the cleaning cleanliness of the roller brush and the cleaning effect of the hand-held spray gun.

  • 03

    Intelligent operation

    Adopt intelligent electric and hydraulic operation control, indoor one-key operation, instrument monitoring, video monitoring for guardrail cleaning and road flushing.

    The vehicle is equipped with multiple sensing and monitoring systems, which can sense and monitor the execution of actions of various agencies during operation.

    The pressure of the waterway system of the guardrail cleaning vehicle is adjustable, which can be converted according to the actual situation of the road guardrail. No need to manually get off the car to adjust, safe and convenient.

  • 04

    Standard stainless steel tank

    The tank body is made of stainless steel or high-quality carbon steel (with anti-corrosion treatment). The top of the water tank is provided with a hoisting device, which is convenient for hoisting and disassembly. The maintenance manhole device is designed on the side of the tank, which is convenient for inspection and maintenance, and also reduces the risk of climbing.

  • 05

    Leading configuration

    Equipped with a hose reel with automatic recovery function, the maximum cleaning distance can reach 15 meters. Equipped with a high-pressure hand-held spray gun for cleaning floors, trash cans, sidewalks, non-motorized vehicle lanes, squares, pedestrian streets, etc.

    The high-pressure water pump automatically performs water-free alarm protection through the water level alarm device to remind the operator.

    A circular warning light is installed in the middle of the vehicle, as well as a night work light, and an arrow-type warning light is installed in the rear.

    The top and left and right sides of the cleaning device are closed by guards and shutter doors, which are both beautiful and safe.

  • 06

    Multiple scene work

    It integrates multiple functions and can clean the guardrails, as well as urban sculpture traffic signs, traffic signs and billboards. At the same time, it has various functions such as road water spraying, garden spraying, high-pressure flushing road surface, spray dust reduction and emergency fire fighting.


Product Description

CHD5073GQXQLE6 guardrail cleaning truck is a two-way guardrail cleaning equipment independently developed by            Yantai Hyde Special Vehicle Co., Ltd. according to market demand. It has superior performance and leading            technology. For cleaning, it can also clean urban sculpture traffic signs, traffic signs, and billboards.

The CHD5073GQXQLE6 guardrail cleaning truck is modified with the National VI automobile chassis produced by            Qingling Automobile Co., Ltd., and the Qingling diesel engine is used as the auxiliary engine to            independently drive the working device. It has various functions such as road watering, garden spraying,            high pressure flushing road surface, spray dust reduction and emergency fire fighting.

parameter list

project

Indicators and Parameters

job performance

cleaning thickness

mm

0-200

cleaning height range

mm

100-1900

Minimum cleaning speed

km/h

3-5

cleaning efficiency


≥90%

high pressure water pressure

MPa

15

High pressure water flow

L/min

70

Corner spray cleaning width

m

6

Working time

h

7

low pressure water

≤0.3 MPa

Low pressure water flow

≤80L/min

The maximum volume of the water tank

L

≥4000


Driving performance

top speed

km/h

95

The number of occupants in the cab:


2

Vehicle parameters

Dimensions (L×W×H)

mm

6460×1980×2740

wheelbase

mm

3815

total mass

kg

7300

curb weight

kg

4975


Chassis parameters


front suspension/rear suspension

mm

1015/1610

Axle load

mm

2580/4720

engine model

4KH1CN6LB

Engine rated power/speed

kW/(r/min)

87/2900

Displacement

ml

2999

Max torque/speed

N.m/(r/min)

290/1500~2900

auxiliary

engine engine model

Qingling 4JB1-TCH

rated power

68kw
