Function introduction
01
Leading technology
The water tank is equipped with a low water level alarm system, and is equipped with a left and right central column-shaped side flushing device, and the nozzle can be adjusted arbitrarily at a full angle of 360°. The rear workbench is equipped with a high-spray greening water gun, with auxiliary fire-fighting function, and can be formed into a column or mist as required. There is a self-circulating loop in the water system, which can be used to melt the snowmelting agent in winter.
It has various functions such as road watering, road flushing, garden spraying, emergency fire fighting and so on.
Pure electric drive, energy saving and environmental protection, zero emission, no pollution.
02
One-key intelligent control
The whole car function adopts a one-key operating system, with front flushing, rear water spraying functions, and adjustable width.
03
Standard 304 stainless steel box
The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.
04
Ultra-wide working width
The sprinkler width is greater than 16 meters, and the hedging width is greater than 24 meters, leading the industry
05
Working devices are independent of each other
The high-pressure water flow can be independently sprinkled and rinsed left and right, and the operation is simple.
06
Various optional configurations
1. Optional front intelligent spraying device, (washing curb stones, watering curb shrubs)
2. Optional left and right greening watering devices.
3. Optional arrow-type luminous work signs. (warning other vehicles to avoid)
4. Optional reversing monitoring device. (It is convenient for the driver to observe the working condition of the rear of the vehicle)
5. Optional carbon steel internal anti-corrosion treatment tank.
Application scenarios
It can be widely used in daily spraying and cleaning operations in highway, municipal, sanitation and other departments.
Product Description

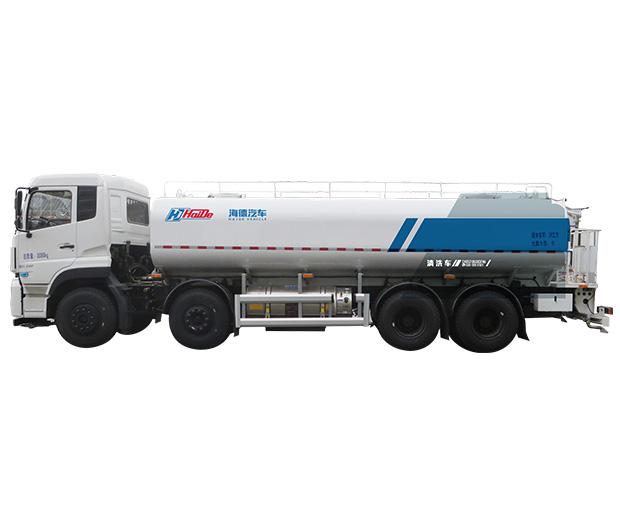

CHD5310GQXDFN6 natural gas cleaning vehicle is a natural gas cleaning vehicle independently developed by Yantai Hyde Special Vehicle Co., Ltd. to meet market demand. It has various functions such as road watering, road flushing, garden spraying, emergency fire fighting and so on.
It adopts Dongfeng Natural Gas National VI chassis modification, and is equipped with tanks, low-pressure water pumps, pipelines, and control systems. The emission reaches the National VI standard. The chassis power take-off drives the low-pressure water pumps, which are mainly used for low-pressure flushing and spraying functions. All are controlled on and off by pneumatically driven ball valves. The high-pressure water flow can be independently sprinkled and rinsed left and right, and the operation is simple. The car can be widely used in daily spraying and cleaning operations in highway, municipal, sanitation and other departments.
parameter list
project | Indicators and Parameters | ||
vehicle model | CHD5310GQXDFN6 | ||
Chassis model | |||
Dimensions | Car length mm | 10700，11350(Optional smart sprinkler) | |
car width mm | 2550 | ||
car high mm | 3340 | ||
wheelbase | Front axle - rear axle mm | 1995+3650+1350 | |
engine model | YCK08300N-60 | ||
Rated power kW | 221 | ||
Chassis engine displacement ml | 7698 | ||
curb weight kg | 12700 | ||
Rated loading mass kg | 18170 | ||
maximum total mass kg | 31000 | ||
Effective volume of water tank m³ | 19 | ||
sprinkler system | sprinkler flow L/min | 500-800 | |
Sprinkler width m | ≧16 | ||
flush width m | ≧24 | ||
water gun rangem | 38 | ||
Sprinkling speed Km/h | 0-20 | ||
