CHD5041TYHDFBEV

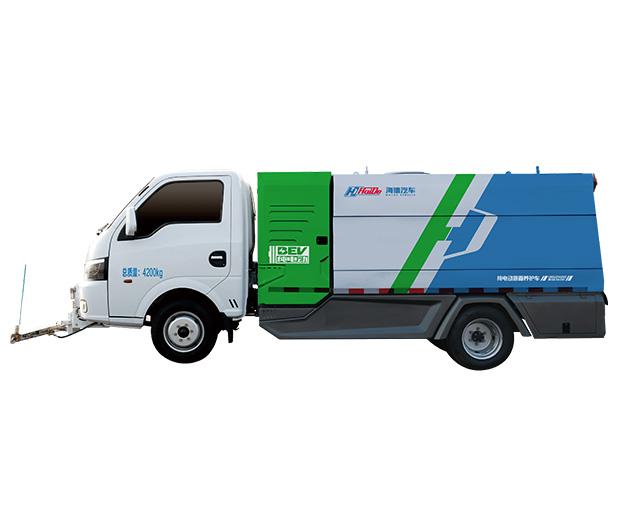

Pure Electric Pavement Maintenance Vehicle

Main purpose

Hotline:

+86-15753570919

Function introduction


  • 01

    Intelligent control

    The system adopts CAN communication intelligent control, the information transmission is high-speed, reliable, and the anti-interference ability is strong.

  • 02

    Independent working power

    The power of the bodywork is independent, and the water spraying operation and the driving of the vehicle do not affect each other;

  • 03

    Large flow and high pressure

    The high-pressure water pump is imported, with large flow and high pressure;

  • 04

    Various ways of adding water

    The water filling interface adopts two methods: fire hydrant and top;

  • 05

    Leading technology

    Pure electric drive, energy saving and environmental protection, zero emission, the battery life can reach 224 (working condition method).

    The width of the front flushing operation can be adjusted up, down, left and right to facilitate the flushing of the road surface. In addition, there are side flushing nozzles on the left and right sides of the flushing frame to facilitate the flushing of roadside garbage.

    The single-point flushing operation distance is long, and it can also be adjusted up and down, left and right, which can effectively remove the accumulated garbage on the roadside. All operations are controlled in the cab.

    Equipped with a hand-held spray gun and a hose reel as standard, the extension length of the coil is up to 15 meters, which is used for cleaning vehicles and removing small advertisements on the roadside.

  • 06

    Standard stainless steel material

    The clean water tank is all made of high-quality stainless steel with strong corrosion resistance.


  • Optional

    1. Trolley: for the convenience of flushing pedestrian auxiliary roads;

    2. Hand-push cleaning tray: In order to clean up the viscous garbage on the road (such as chewing gum, etc.);

    3. Tail spraying device (optional after listing): Nozzles are also installed at the tail of the vehicle, and different spraying methods can be selected according to needs. It can be used for disinfection, sterilization and dust suppression of roads, squares and back streets.

parameter list

project

Indicators and Parameters

Vehicle parameters

vehicle model

CHD5041TYHDFBEV

Vehicle L × W × H (mm)

5890X1790X2140

Front suspension/rear suspension(mm)

1180/1300

Approach angle/Departure angle(°)

10/17

Total mass(kg)

4495

Curb weight(kg)

2820

Rated load mass(kg)

1545

Chassis parameters

Chassis model

EQ1040TACEV4

Wheelbase(mm)

3000

Wheel base (front/rear)(mm)

1387/1242

Maximum speed(km/h)

90

Cruising range(km)

224

Charging time(h)

1.5

Total battery energy(Kwh)

66.8

Battery energy density(wh/kg)

154.59

Battery Type

LiFePO4

battery mode

(CATL)

Drive motor model

TZ180XSSA02(Jingjin Electric Technology)

Drive motor power (rated/peak)(Kw/rpm)

42/70

Motor controller model

KTZ34×37S-GVD52031(INVT)

Job parameters

Fresh water tank volume(m3)

2.5

Cleaning width(mm)

1800

The maximum pressure of the water pumpMpa

≥15

Pump flow(L/min)

≤50
