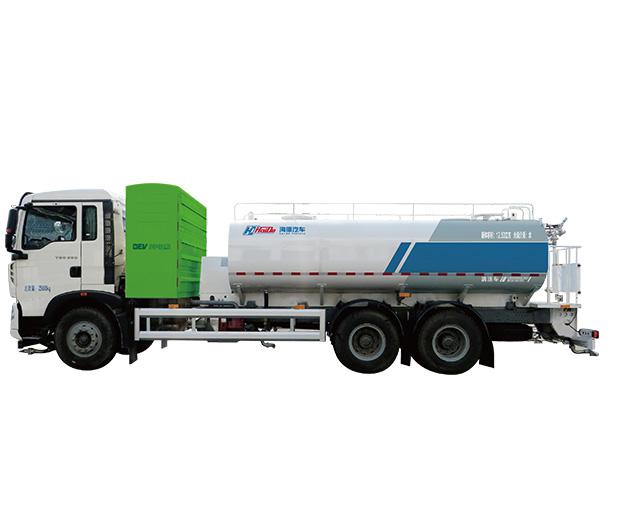

CHD5250GSSZQBEV

sprinkler

Main purpose

Hotline:

+86-15753570919

Function introduction


  • 01

    Leading technology

    The water tank is equipped with a low water level alarm system, and is equipped with a left and right central column-shaped side flushing device, and the nozzle can be adjusted arbitrarily at a full angle of 360°. The rear workbench is equipped with a high-spray greening water gun, with auxiliary fire-fighting function, and can be formed into a column or mist as required. There is a self-circulating loop in the water system, which can be used to melt the snowmelting agent in winter.

    It has various functions such as road watering, road flushing, garden spraying, emergency fire fighting and so on.

    Pure electric drive, energy saving and environmental protection, zero emission, no pollution.

  • 02

    One-key intelligent control

    The whole car function adopts a one-key operating system, with front flushing, rear water spraying functions, and adjustable width.

  • 03

    Standard 304 stainless steel box

    The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.

  • 04

    Ultra-wide working width

    The sprinkler width is greater than 16 meters, and the hedging width is greater than 24 meters, leading the industry

  • 05

    Working devices are independent of each other

    The high-pressure water flow can be independently sprinkled and rinsed left and right, and the operation is simple.

  • 06

    Various optional configurations

    1. Optional front intelligent sprinkler.

    2. Optional different styles of vehicle exterior signs;

    3. Optional rear circular nozzle;

    4. Optional coil assembly;

    5. Optional left and right greening irrigation devices;

    6. Optional top greening irrigation device;

    7. Optional without operation indicator;

parameter list

projectIndicators and Parameters
vehicle modelCHD5250GSSZQBEV
Chassis modelZZ1257N464GZ1EV
DimensionsCar length mm
9810(Standard),10290(Optional smart sprinkler)
car width mm
2496
car high mm
3050
wheelbaseFront axle - rear axle  mm4600+1350
Model after box
Model after boxL271C01
Assembly manufacturing companyNingde Times New Energy Technology Co., Ltd.
 Assembly nominal voltage(V)579.6
Nominal capacity of power battery assembly(Ah)542
Total energy storage(kWh)
314.14
motormodelTZ400XSTPG07
manufacturer
Tubaijia Power Technology Co., Ltd.
Rated power/speed/torque(kW/r/min/N.m)
120/1432/800
Peak power/speed/torque(kW/r/min/N.m)200/3000/1700
curb weight   kg12870
Rated loading mass  kg12000,11935
maximum total mass  kg25000
Effective volume of water tank  m³12.53
sprinkler systemsprinkler flow L/min500-800
Sprinkler width  m≧16
flush widthm
≧24
water gun range m
38
Sprinkling speed    Km/h0-20
