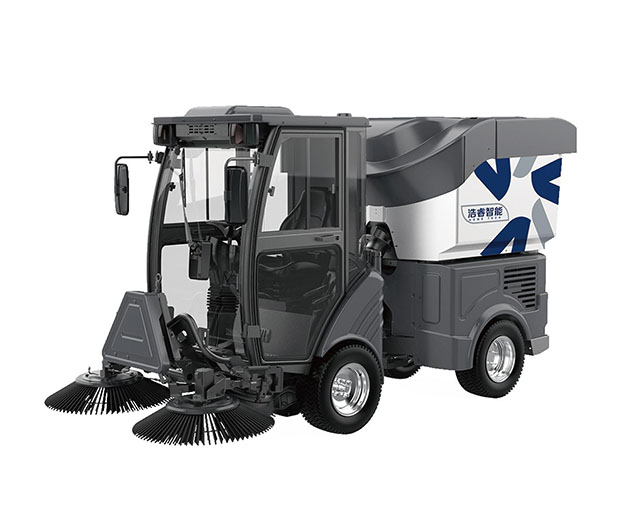

CHR30MEV
pure electric multifunctional road sweeper
Main purpose
Multi mode operations such as cleaning, snow sweeping and shoveling of urban auxiliary roads, scenic belts, secondary trunk roads, some main roads, parks, industrial parks, airports, high-speed railway squares, school areas and other roads.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function introduction
01
Green environmental protection
The whole machine is driven by lithium battery, which is green and environment-friendly.
02
8-hour continuous operation
Power system, long operation time, continuous operation time of more than 8 hours.
03
Flexible
Articulated steering structure, small turning radius, flexible steering, and the minimum turning radius can reach 2050mm.
04
Broaden your horizons
Panoramic glass cab, wide driving vision.
05
Comfortable driving
Equipped with cold and warm air conditioning, the driving environment is comfortable.
06
One machine with multiple functions
The multi-function device can be selected to realize the rapid switching of cleaning function, rolling sweeping function, snow pushing function and other functions by quickly replacing the front accessories.
Application scenario
Multi mode operations such as cleaning, snow sweeping and shoveling of urban auxiliary roads, scenic belts, secondary trunk roads, some main roads, parks, industrial parks, airports, high-speed railway squares, school areas and other roads.
parameter list
| project | parameter | ||
|---|---|---|---|
| Car model | CHR30MEV | ||
| Product parametersl | Overall dimension | 3720×1190×2050 | |
| Wheelbase(mm) | 1510 | ||
| Minimum turning radius(mm) | 2050 | ||
| Maximum total mass(Kg) | 2500 | ||
| Curb Weight(Kg) | 1800 | ||
| Water tank | 150 | ||
| Dustbin volume (dry / wet) (L) | 500/750 | ||
| Cleaning width(m) | 2100 | ||
| Continuous working time(h) | ≥8 | ||
| Maximum speed(km/h) | 20 | ||
| Pushing width(mm) | 1500 | ||
| Snow- shoveling angle(/) | ±20° | ||
| Power cell(/) | lithium battery | ||
| Charging mode(/) | DC charging pile Portable charger Vehicle charging | ||
