Function introduction
01
Independent waterway system
High pressure spray and low pressure water system are independent of each other.
02
Corrosion-resistant box
The tank body is equipped with 304 stainless steel as standard with multiple anti-wave baffles to reduce the impact on the tank body.
03
A spray system with excellent performance
The spray system adopts double spray rings and adjustable fog size nozzles, with strong wind, high range (far) and good penetration.
04
Safety protection device
The high-voltage line of the vehicle generator set is equipped with a safety short-circuit protector to prevent safety accidents when the line is worn, flooded or other short-circuit conditions;
The multi-protection rear work platform is equipped with a safety frame protection device;
Rear emergency stop button, safety alarm device, safety short-circuit protection system Multiple safety protection systems ensure the safety of vehicle operation.
05
Intelligent Operating System
Intelligent speed control system, with manual (remote control) and remote control two modes of operation, simple and intelligent operation;
Adopt one-key operating system, with front flushing, rear watering function, adjustable width;
06
Leading technology
The vehicle can be equipped with a snow shovel, which is used for snow removal in winter, and one vehicle can be used for multiple purposes.
Equipped with left and right central column-shaped side flushing devices, the nozzle can be adjusted at any angle of 360°; the water tank is equipped with a low water level alarm system; the vehicle adopts a self-priming water pump with self-priming function, and the water system has a self-circulating loop, which can be used for melting in winter snow melting agent;
Pneumatic system is used in the waterway of the whole vehicle, which is safe, reliable, convenient and flexible to operate; stainless steel vertical multi-stage centrifugal water pump has high lift, long service life and corrosion resistance; it is equipped with high-spray greening water gun, which has auxiliary fire-fighting function and can be pressed into a column or mist.
07
Optional configuration
The vehicle can be equipped with a snow shovel, which is used for snow removal in winter, and one vehicle can be used for multiple purposes.
Product Description

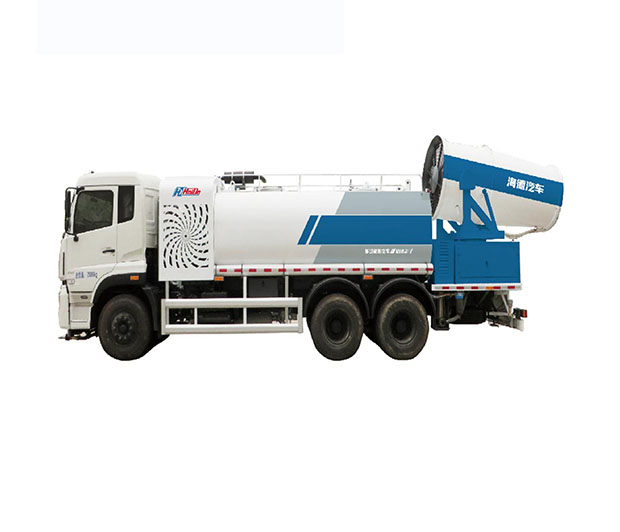

CHD5250TDYDFE6 multifunctional dust suppression truck is a multifunctional dust suppression truck independently developed by Yantai Hyde Special Purpose Vehicle Co., Ltd. according to market demand, in order to fully save energy, reduce consumption, reduce air pollution, and beautify the city. It has superior performance and leading technology. Adopt world famous brand products, stable quality and multi-functional integration.
The whole vehicle adopts the chassis modification produced by Dongfeng Commercial Vehicle, and is equipped with tanks, dust suppression devices (fog cannons), low-pressure water pumps, pipelines, and control systems. Mainly used for low-pressure spraying and other functions, each nozzle is controlled by a pneumatic ball valve; and the dust suppression device (fog cannon) equipped with the vehicle can effectively reduce the haze, and is also suitable for dry construction sites, slag yards, storage Coal yard and other areas with serious dust, reduce pollution.
parameter list
project | unit | Indicators and Parameters | ||
CHD5250TDYDFE6 | - | Chassis model:DFH1250D4 | ||
Dimensions | Car length | mm | 11050（11070） | |
car width | mm | 2500 | ||
car width | mm | 3750 | ||
wheelbase | mm | 4350+1350 | ||
Chassis engine model | D6.7NS6B 290(Standard） DDi75E350-60, DDi75E300-60（ select configuration） | |||
Chassis Engine Rated Power/RP | Kw/r/min | 213/2300（257/2300,220/2300） | ||
maximum total mass | kg | 25000 | ||
curb weight | kg | 14000,14700 | ||
Rated contained mass | kg | 10870,10805,10170,10105 | ||
spray system | Range (static wind) | m | Level120m；vertical：40-50m | |
spray water pressure | Mpa | 1.5－3.0 | ||
Spray water flow | M3/h | 12 | ||
fog titer | μ | 20－200 | ||
jet pitch angle | ° | -10－45 | ||
Horizontal rotation angle | ° | 0-320 | ||
work efficiency | m2/h | 240Ten thousand-300Ten thousand | ||
sprinkler system | sprinkler flow | L/min | 500-800 | |
Sprinkler width | m | ≥16 | ||
flush width | m | ≥24 | ||
water gun range | m | 38 | ||
Tank volume | M³ | 14 | ||
