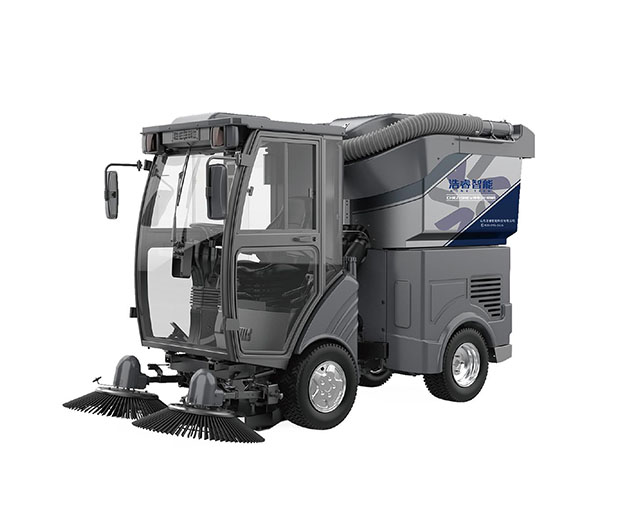

CHR21SHEV
pure electric road sweeper
Main purpose
Cleaning of urban roads, back streets and alleys, airports, docks, squares, parks, campuses, factories, tunnels and other narrow road conditions.
Hotline:
+86-15753570919
- Function introduction
- Application scenario
- parameter list
Function introduction
01
Stable and flexible
Full hydraulic steering is adopted, with simple structure, small turning radius, stable steering and flexible control
02
Dry and wet dust removal
The operation dust removal mode adopts the dual-purpose structure of dry and wet, which can meet the humid and rainy climate in the South and the cold and dry climate in the north
03
High level unloading
The unloading mode adopts high-level self unloading structure, which can be connected with large garbage compression truck and large garbage can.
04
Traveling system
The walking system adopts well-known brand DC frequency conversion motor and controller, which has high driving efficiency and can feed back electric energy to the battery during braking and downhill.
05
Efficient control system
The whole machine is controlled by can communication and ECU controller. The cleaning and brushing operations can be completed with one key
06
Safety and stability
The power system battery of the whole machine is powered by lithium battery pack, and the battery is equipped with BMS management and control system to ensure the safety and stability of the vehicle.
07
Charging mode
The elevation voltage national standard pile can be charged, and the charging time is only 15h.
Application scenario
Cleaning of urban roads, back streets and alleys, airports, docks, squares, parks, campuses, factories, tunnels and other narrow road conditions.
parameter list
| project | parameter | ||
|---|---|---|---|
| Car model | CHR21SHEV | ||
| Product parametersl | Overall dimension | 3500×1190×2170 | |
| Max total mass (kg) | 2400 | ||
| Curb weight (kg) | 840 | ||
| Cleaning width (m) | 1.1-1.8 | ||
| Maximum speed(km/h) | 18 | ||
| Operating speed(km/h) | 1-10 | ||
| Cleaning efficiency(%) | ≥90% | ||
| Minimum ground clearance(mm) | 100 | ||
| Minimum turning radius(m) | 2.6 | ||
| Max Gradeability(%) | 20% | ||
| Stopping distance(m) | ≤6.29 | ||
| Track front/rear(mm) | 930/930 | ||
| Discharge angle(°) | 95° | ||
| Unloading mode | High level dump | ||
| Water tank volume(L) | 150 | ||
| Bin volume(L) | 500 | ||
| Bin matel | stainless steel | ||
| Operating ambient temperature(°C) | -20~45 | ||
| Dust removal mode | Sewage circulation and dry dedusting | ||
| Continuous operation time(h) | ≥7 | ||
