Function introduction
01
The box body is made of stainless steel 06Cr13
which has strong overall corrosion resistance. The rear door and the box are sealed with a sealing strip and locked with a lock hook to effectively prevent the leakage of liquid contained in the garbage.
02
The truck is equipped with sliding side doors with sliding rails on both sides of the garbage bin,
and the doors on both sides are staggered in the front and rear to ensure the maximum utilization rate of the box.
03

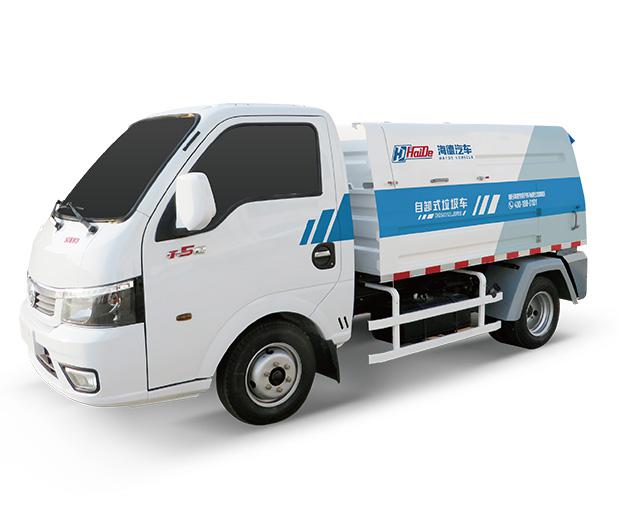

The vehicle is based on the EQ1035SJ16QC
truck chassis produced by Dongfeng Motor Co., Ltd., and retrofitted with a reversible garbage box and a hydraulic system driven by a power unit, which is specially used for collecting and transporting domestic garbage such as bags. A new generation of dedicated pure electric dump trucks. The whole vehicle has novel appearance, elegant appearance, flexible and light operation, good stability, energy saving and environmental protection, low noise and convenient maintenance.
04
Through the electric control panel installed in the cab,
the car can realize one-key operation of the power unit to control the lifting of the box. The lifting of the box can be stopped at any position within the turning range as required, and the rear door can be automatically opened or closed with the lifting of the box.
05
Adopt domestic well-known brand chassis with reliable performance;
as the power source of the hydraulic system, the power unit assembly has fast action response and high sensitivity; the dual- cylinder mechanism is adopted, the lifting and unloading are more stable, and the lifting capacity is larger.
06
After the box is lifted
the safety bracket can be used to prevent the box from falling, so as to ensure the safety of operation and maintenance at the bottom of the box.
Application scenarios
It is used for the collection and transportation of domestic garbage and other garbage in government agencies, hospitals, schools, hotels, and property communities.
parameter list
| project | Indicators and Parameters | |
| vehicle model | Vehicle model | CHD5032ZLJDFE6 |
| Vehicle length × width × height（mm） | 4650×1735×2010 | |
| Front suspension/rear suspension（mm） | 1181/869 | |
| Approach angle/Departure angle (°) | 21/23 | |
| Total mass（kg） | 3495 | |
| Curb weight （kg） | 1980 | |
| Rated load mass（kg） | 1385 | |
| Box volumem3 | 3 | |
| Hydraulic system rated pressure MPa | 16 | |
| Maximum lift angle（°） | ≥45 | |
| side protection | / | |
| rear protection | / | |
| Chassis parameters | Chassis model | EQ1035SJ16QC |
| Manufacturer | Dongfeng Motor Co., Ltd. | |
| Engine power（kw) | 83 | |
| fuel type | 92#gasoline | |
| Emission Standards | China's exhaust emission standard VI | |
| Number of occupants in the cab | 2 | |
| Working voltage(V) | 12 | |
| Tire size/quantity | 175R14LT 8PR /4 | |
| Wheelbase（mm） | 2600 | |
| Axle load (front/rear) | 1300/2195 | |
| Wheel base (front/rear) | 1369/1242 | |
| Maximum speed （km/h） | 100 | |
