Function introduction
01

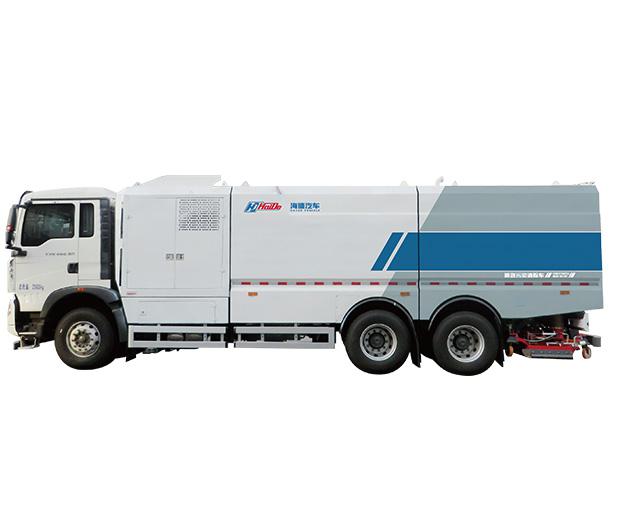

Multi-modular combination, one car multi-purpose
The vehicle is equipped with a central obstacle avoidance side cleaning tray and a rear rear cleaning tray, which diversifies the operation modes of the vehicle: 1. When the central side cleaning tray (with obstacle avoidance function) and the rear rear cleaning tray operate at the same time, it can realize The comprehensive road decontamination operation can completely remove the dirt accumulated on the roots of the roadside stones. 2. When the rear rear cleaning plate is operated independently, due to the high-pressure rotary flushing, rear flushing, and side swing flushing components equipped on it, post cleaning and decontamination operations and quick cleaning operations can be realized. The central side cleaning tray is an optional structure. 3. Spray dust reduction can meet the cooling and dust removal of dry air by vehicles in hot summer.
02
Hydrostatic drive technology imported from Germany
The chassis walking operation of the car is equipped with the hydrostatic drive traveling technology imported from Germany, which realizes high torque and ultra-low speed operation. The car can not only meet the road pollution removal and decontamination operation speed of 0-4 kilometers (automatic cruise), but also has the function of fast cleaning operation on ordinary roads, and the operating speed can reach 0-10Km/h steplessly adjustable.
03
Easy to maintain
The water tank adopts a front structure, and the power compartment and the garbage box adopt an integral structure, which can rise and fall with the lifting and lowering of the garbage box body, which is convenient for the maintenance of the power part;
04
Imported high-quality parts configuration
High-end HOWO luxury chassis produced by German MAN technology, hydraulic pumps and hydraulic motors imported from Germany with world quality, equipped with Swedish SKF bearing support components, Italian plunger high-pressure water pumps, imported high-speed rotating flushing components, matching selection of world-quality components , which can meet the long-term stability of the vehicle.
05
Low pressure flushing, spray dust reduction
In order to facilitate the low-pressure flushing of the road surface, the vehicle is equipped with a low-pressure flushing system with a maximum flow rate of 60 cubic meters per hour and a width of up to 24m for flushing.
06
Pipeline injection purification device
The car is equipped with a water spray pipeline purification device, which uses the chassis' own air source to purify and spray the water spray pipeline and components through the control device to prevent damage to the components caused by water accumulation in the pipeline in winter.
Application scenarios
It is mainly used for deep cleaning of roads, to solve the problem that the existing sanitation equipment cannot effectively remove road hardening, oil pollution and other pollutants, and is used in road maintenance, biochemical treatment, emergency rescue, anti-haze and haze reduction and other fields.
The vehicle can be widely used in the decontamination and cleaning operations of main roads, squares and wharfs in urban areas.
parameter list
| project | unit | Indicators and Parameters | |
| auxiliary engine | Chassis manufacturer | Sinotruk Jinan Truck Co., Ltd. | |
| Chassis model | ZZ1257N464GF1 | ||
| drive type | 6X4 | ||
| Chassis wheelbase | mm | 4875+1400 | |
| engine model | MC07.34—60 | ||
| Engine rated power/speed | kW | 294 | |
| engine capacity | ml | 10518 | |
| Emission Standards | China's exhaust emission standard VI | ||
| Vehicle parameters | Vehicle curb weight | kg | 19240 |
| maximum total mass | kg | 25000 | |
| Overall dimension L X W X H | mm | 10230x2520x3315 | |
| Theoretical maximum speed | km/h | 110 | |
| water tank volume | m³ | ≥12 | |
| trash can volume | m³ | ≥8 | |
| Deep cleaning speed | km/h | 0～4 | |
| High pressure water system pressure | MPa | ≥25 | |
| Dumpster discharge corner | ° | ≥50 | |
